Gash Grinding – the challenge
  • Gashing requires higher profile consistency (of the grinding wheel) in comparison to fluting, due to the high edge quality required of carbide tools. However, there may still be substantial material removal in the gashing of end cutters. Hence, the demand for large removal capacity is high in this case as well.
  • In the gashing operation, contact area is relatively large, requiring proper cooling.
  • A peripheral speed of 20-30 m/s is recommended.
  • Higher speeds make the wheel work harder, thus requiring more cooling.
  • Lower speeds make the wheel work softer, which means rapid wear, but less cooling required.

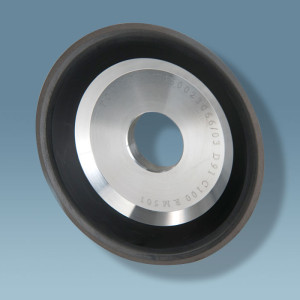

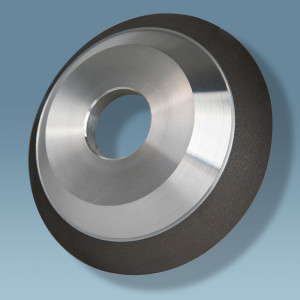

  • The Toolgal RM6/5 Gash Grinding wheels are very effective in the gashing operation, with very large stock removal capacity and high profile consistency.
  • Suitable Shapes 1V1, 3V1, 14V1, 12V9
Request a sample or Information

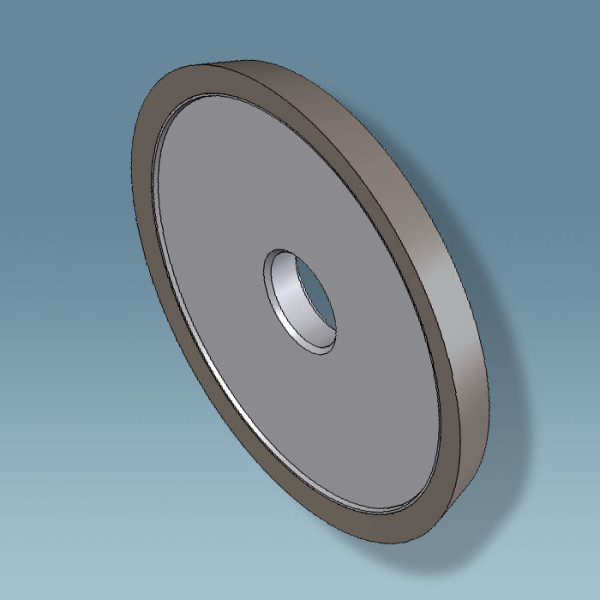

1V1

1V1

1V1 Bonds Available
D Ø T X X Diamond CBN
50 6,8,10 6 10 RM6 RM5 RM9
75 6,8,10,12,15 6 10 RM6 RM5 RM9
100 6,8,10,12,15 6 10 RM6 RM5 RM9
125 6,8,10,12,15 6 10 RM6 RM5 RM9
150 6,8,10,12,15 6 10 RM6 RM5 RM9

12V9

12V9

12V9

D U X Diamond CBN
75 02/03/2016 10 RM5 RM6 RM9
100 02/03/2016 10 RM5 RM6 RM9
125 02/03/2016 10 RM5 RM6 RM9

3V1 14V1

3V1

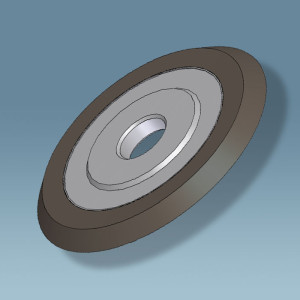

14V1

3V1 14V1

3V1 / 14V1 Bonds Available
D U X=6mm X=10mm Diamond CBN
50 2,4,5 6 RM5 RM9
50 6,8,10 6 10 RM6 RM5 RM9
75 2,3,4,5 6 RM5 RM9
75 6,8,10,12,15 6 10 RM6 RM5 RM9
100 2,3,4,5 6 RM5 RM9
100 6,8,10,12,15 6 10 RM6 RM5 RM9
125 2,3,4,5 6 RM5 RM9
125 6,8,10,12,15 6 10 RM6 RM5 RM9
150 2,3,4,5 6 10 RM6 RM5 RM9
150 6,8,10,12,15 6 10 RM6 RM5 RM9
